Conventional Pallet Racking :


Excellent stock control. Adaptable to any space, weight or size. Can combine with manual picking shelves.

Versatile and easy to maintain, with a wide range of accessories to store virtually any load.



The most universal system for direct and single access to each pallet. The optimal solutions for those warehouses with palletised products and a wide variety of SKUs.

The working aisle measurement between each rack and the rack height depends upon the characteristics of the forklift trucks or lifting devices, pallet size and the height of the warehouse itself.



Advantages :
  • Total stock control: each storage space is taken up by a single pallet.

  • Maximum adaptability to any load type both in terms of weight and volume.

  • It can be combined with longspan beams for manual selection of goods.



In order to store a greater number of pallets double-deep racks can be installed enabling one pallet to be stored in front of another on each side of the aisle.

Drive-in Pallet Racking :

Optimizing available space. Elimination of aisles between shelves. Admits as many references as load lanes.Appropriate system to store homogeneous, low-rotation products with a large number of pallets per reference.



This system is base on the storage by accumulation principle, which enables the highest use of available space in terms of both area and height.

Drive-in racking is designed for the storage of homogenous products. It accommodates a large number of pallets for each SKU.



Advantages :

  • Maximum profitability of the available space (up to 85%).

  • Removal of aisles between the ranking.

  • Rigorous control of entries and exits.

  • It allows as many SKU as loading lanes.

Two management systems are available: the drive-in system, with only one access aisle, and the drive-through system, with access to the load from both sides of the rack.

The system is frequently used in cold stores (refrigeration and freezing) which require maximum use of space for the storage of products in a controlled temperature.

Mobile pallet racking Movirack :


Optimization of space. Ideal system for refrigerated or deepfreeze rooms. Elimination of individual access aisles.This system on mobile bases enables access to several shelves from one single working aisle.

With the Movirack system, shelving units become more compact and their storage capacity considerably increased. All this without giving up direct access to any item in stock.The shelving units are installed over guided mobile bases that slide laterally, thus eliminating the need for aisles, which open up only when accessed. The operator gives the order to automatically open the unit, either by remote control or manually by flicking a switch.The mobile bases have motors, sliders and several safety systems to guarantee a safe and efficient operation.



Advantages :
  • Optimal system for cold stores (both refrigeration and freezer types).

  • Increase in warehouse capacity.

  • Elimination of individual access aisles.

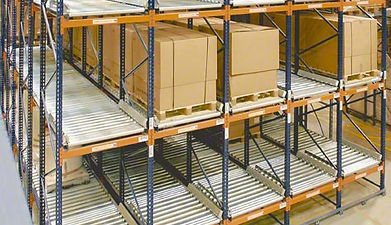

Live pallet racking :


Perfect pallet rotation (FIFO System). Saves space and time when manipulating pallets. Eliminates pass-through interferences. Maximum capacity.Ideal system to store perishable goods with high rotation, as well as high consumption goods with a continuous flux.



This is an ideal system for warehouses of perishable goods, although it can also be used in any industry or distribution business.These racks incorporate roller track sections placed on a sloped lane to allow the pallets to slide over them. The pallets are put in at the highest part of the rolling section and move by the force of gravity and at a controlled speed towards the other end.



Advantages :

  • Enables perfect pallet turnover (FIFO SYSTEM).

  • Maximum capacity as storage system is compact.

  • Time and space saved in pallet handling.

  • Excellent stock control.

Push-back pallet racking :



Saves space and offers high storage density. Each level can store a different reference. Loading and unloading is done using the same aisle (LIFO system).Manoeuvres are quick since the forklifts do not need to be in the storage lanes.



An accumulative storage system that allows up to four pallets deep to be stored per level. All of the pallets of each level, except the top one, are placed on a set of trolleys that are pushed along rolling rails.

Push-back is ideal for storing medium-turnover products, with two or more pallets per SKU (using the Last In First Out (or LIFO) system).



Advantages :

  • The best possible use is made of the space available.

  • Very little height space is wasted.

  • Each level can be used to store a different SKU.

Clad-rack warehouses :


Optimum solution to store at a large heights making the most of the available surface. Can be used together with traditional and automated systems.Large engineering works where the shelves are part of the building’s construction system.



Major works of engineering in which the racking itself forms part of the construction of the building together with side and roof cladding. The ranking structure supports not only the actual goods and the different building elements but also the thrust of the handling devices and external elements: winds, heavy snowfalls, seismic movements, etc.The maximum height of clad-rack buildings is limited by local standards and by the reach height of stacker cranes or fork-lift trucks. This said, warehouses of more than 30m high can be built.



Advantages :

  • Storage at high height, enables maximum use of available surface area without wastage of space.

  • Allows a wide range of goods to be stored.

  • Conventional or automated systems can be used.
